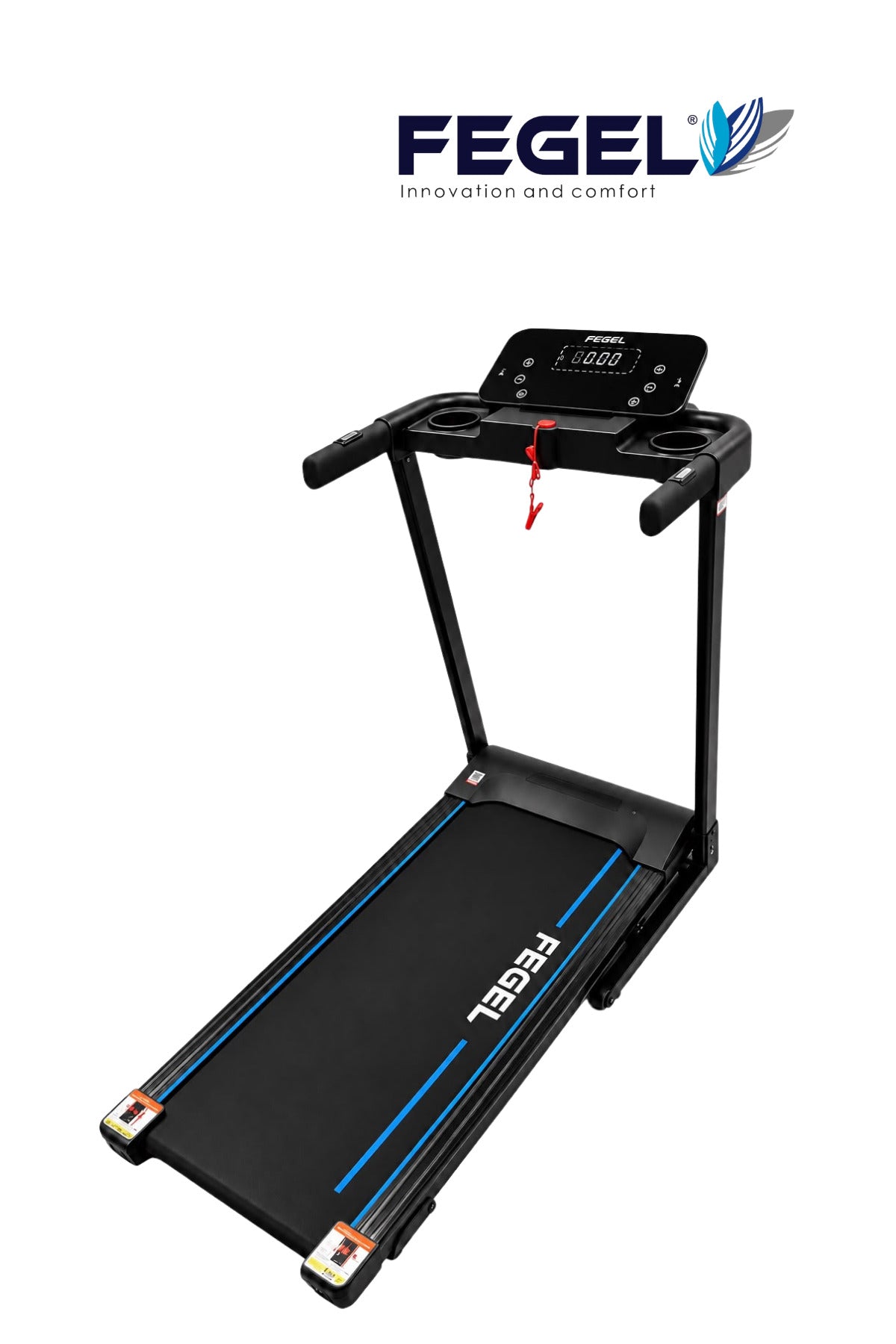

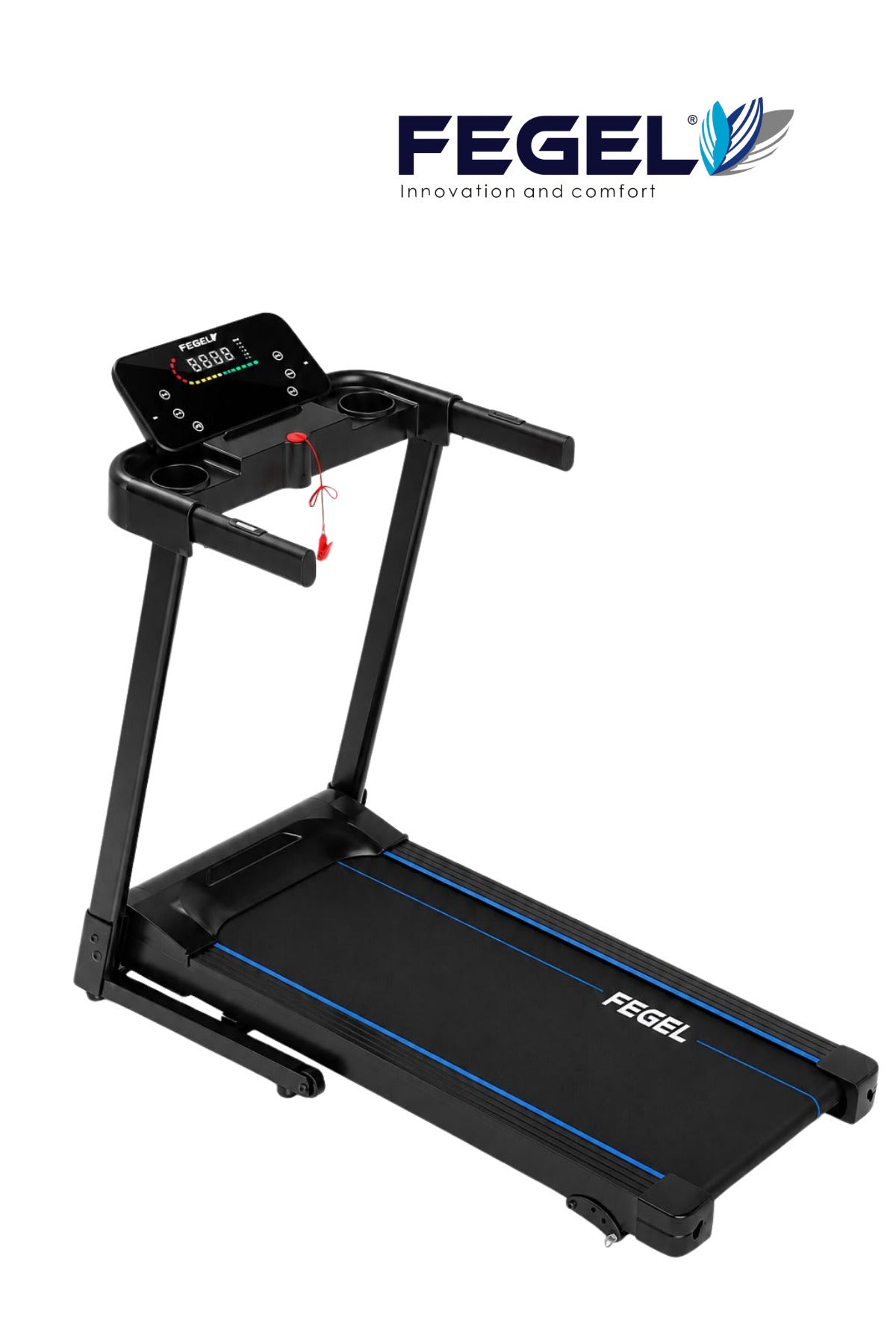

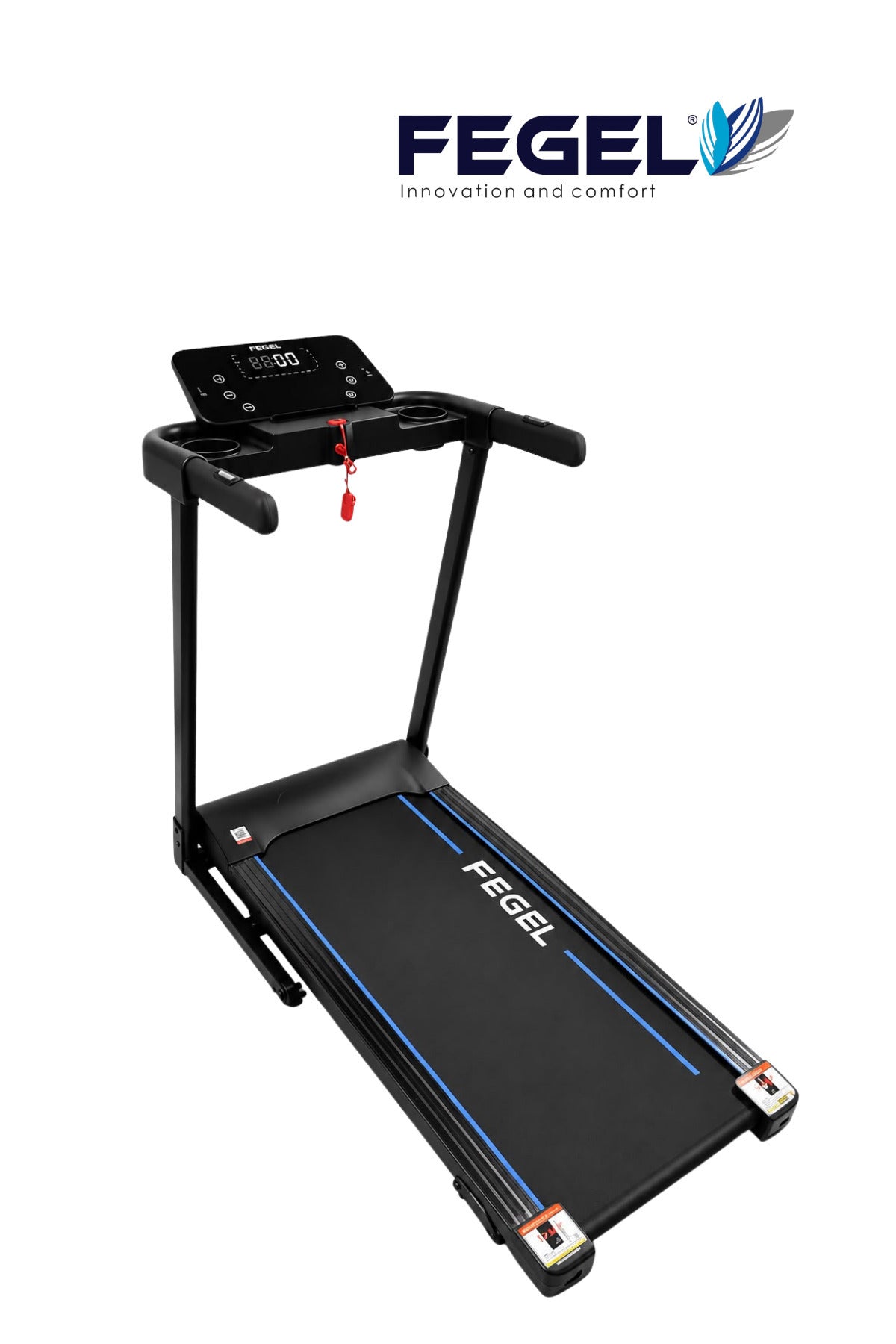

Fegel FG-12 Manual Incline Treadmill - Fitshow Supported

FG-12 Hydraulic Folding Treadmill

Designed to provide a professional and comfortable cardio experience at home, the FEGEL FG-12 Treadmill stands out with its powerful motor, smart LED display panel, and hydraulic folding system that prioritizes mechanical safety. Thanks to its user-friendly interface, it optimizes your workouts with goal-oriented countdown and pre-set exercise programs in addition to manual operation.

Key Features

• Hydraulic Folding System with Shock Absorbers: Thanks to the safe folding technology, you can easily lift the device upward; when opening it, you can press the safety sleeve lightly to allow the belt to lower to the floor in a controlled and slow manner.

• Wide Speed Range & Shortcut Keys: The motor mechanism, offering a speed flexibility of 1.0 – 12.0 km/h, reaches the target speed with a single touch using the shortcut keys (3 / 6 / 9 km/h) on the panel during operation.

• 12 Automatic Exercise Programs (P1 - P12): Professional pre-set exercise modes that divide the total operating time into 20 equal segments, automatically changing the speed at each stage.

• 3-Level Manual Incline Adjustment (maximum 2.45°): By changing the position of the steel locking pin located under the frame, you can increase the difficulty level and calorie burning rate of your workout.

• Smart Hardware & Multimedia: Dual-hand contact pulse sensors that show the instantaneous heart rate on the screen, integrated Bluetooth music function, and an automatic sleep mode that turns off the device when no operation is performed for 10 minutes.

Technical Specifications

Operation and Goal Modes

• Manual Use: The device starts directly in manual mode; time, distance, and calories count up from zero. It stops automatically at the 100-minute continuous use limit.
• Countdown Mode: While in standby mode, you can set time (5-99 min), distance (1.0-99.0 km), or calorie (20-990 kcal) goals by pressing the relevant key. The device stops automatically when the set value reaches zero.
• Magnetic Safety Key: For the device to operate, the red safety key must be in the slot. Attach the clip to your clothing during exercise; the system stops as soon as the key is removed from its place, and "E01" / "E07" errors are prevented.

⚠️ Safety, Usage, and Critical Maintenance Notes

• Space Requirement: To provide a safe landing area, at least 1 meter of space should be left on the right, left, and front of the device, and at least 2 meters at the back.
• Usage Time Limit: The device is not suitable for continuous uninterrupted industrial use. To prevent overheating in the electrical components, it is recommended to limit each session to approximately 30 minutes and allow it to rest for at least 10 minutes after a total of 2 hours of operation.
• Belt Alignment and Tension Adjustment: If the belt shifts to the right, turn the right screw clockwise and the left screw counter-clockwise; if it shifts to the left, turn the left screw clockwise and the right screw counter-clockwise (apply in small steps). At the correct tension, the belt should flex 50-75 mm on both sides when lifted by hand.
• Periodic Lubrication: The silicone oil included in the box should be applied evenly between the walking platform and the belt once a month for light use (less than 3 hours a week); for heavy use (more than 7 hours a week), every 15 days. Care should be taken not to let the liquid come into contact with the electrical components.
• Electricity and Cleaning: Always turn off the device and unplug it before cleaning or opening the cover. Dust the motor section at least once a year. Do not operate the device in damp places such as bathrooms or outdoors, or in areas with direct sunlight.

Box Contents

Warranty and Technical Service

• Warranty Period: 2-Year Official Manufacturer Warranty from the date of purchase.
• Maximum Repair Time: 30 Business Days after reaching the authorized service station.
• Unauthorized persons dismantling or tampering with the mechanical or electronic units, or use in commercial/professional gain-oriented gyms, voids the device warranty.
